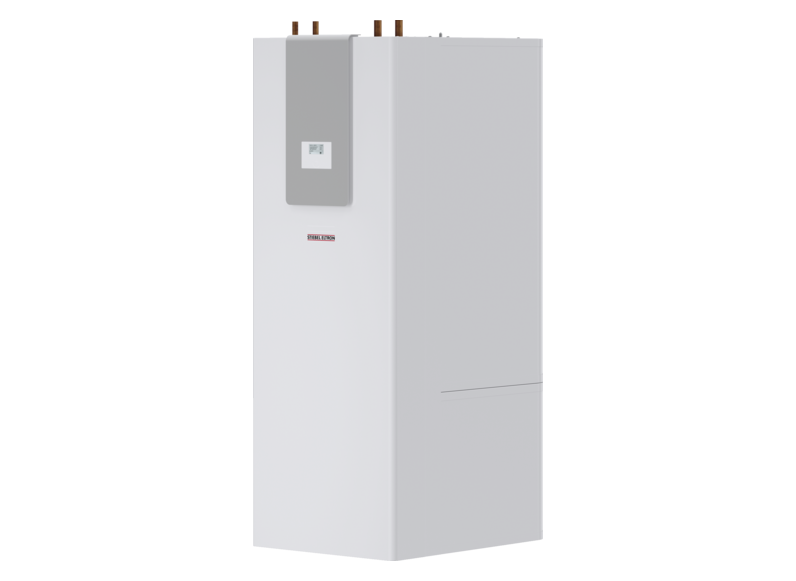

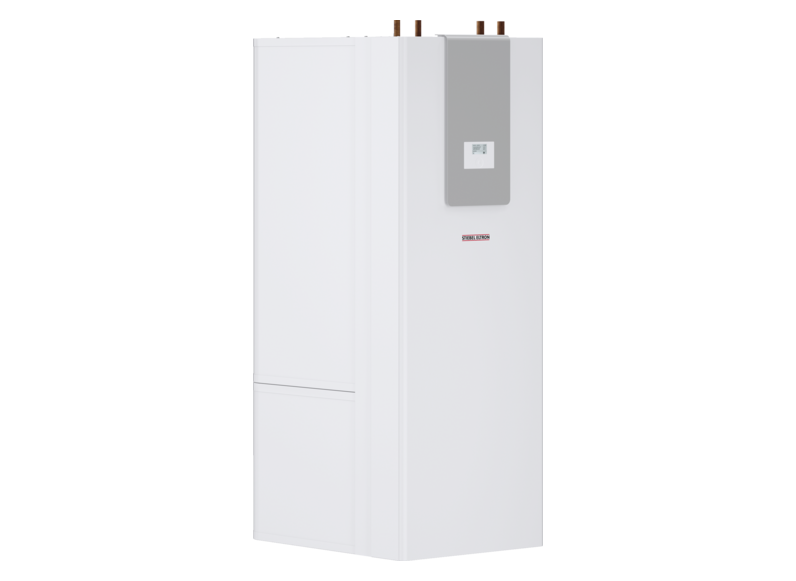

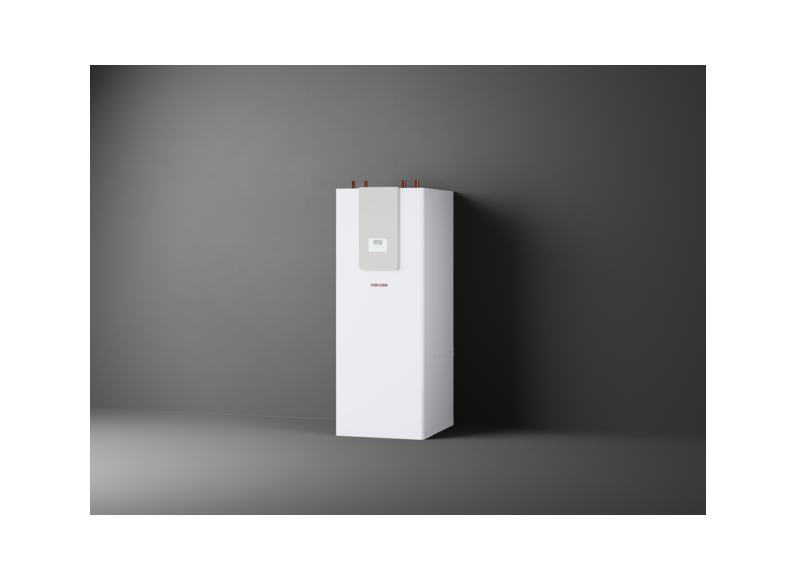

Integral cylinder
HSBC 300 cool (GB) Set

    • Space saving positioning thanks to integration of DHW cylinder, buffer cylinder and hydraulic working parts into a single appliance
    • Large area heat exchanger for high DHW demand

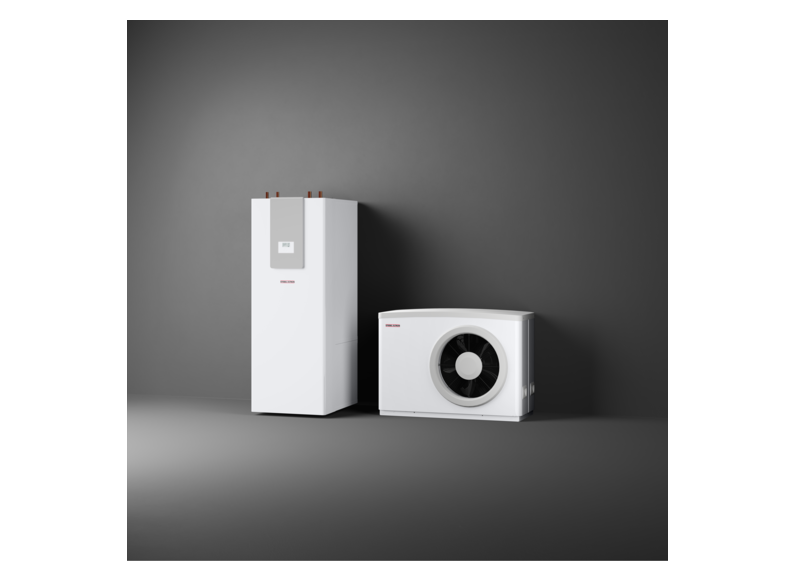

    • The integral cylinder for DHW heating is combined with a heating heat pump and integrated into the heating system.
    • Can be used for cooling via area heating system or fan coil units (condensation resistance)
    • Installation requires little effort thanks to high level of integration including WPM heat pump manager
    Questions about the product Get contact
    award
    award

    Product details

    Application • This integral cylinder is suitable for DHW heating in heat pump mode. It can be simultaneously integrated into heating systems for the hydraulic connection and is used for delivery to/separation between the heat pump and heating circuit. • Designed for heating and cooling in family houses.

    Convenience features • DHW cylinder comprising an enamelled steel cylinder with directly applied foam insulation, an internal indirect coil and a magnesium signal anode for additional corrosion protection. The buffer cylinder is a steel cylinder with directly applied foam insulation. • The heat pump manager, cylinder charging pump, heating circuit pump and 3/2-way diverter valve are included. Prepared for optional extension with a heating circuit with mixer.

    Installation • The cylinders are arranged one above the other, can be separated from each other for easier installation and are equipped with recessed grips.

    Efficiency • Low standby losses because both the cylinder volume and the indirect coil surface area are matched to the application.



    ERP product datasheet
    UK ERP product datasheet
    Technical datasheet

    Product Number: 204651

    Energy efficiency class: B

    Nominal capacity, DHW cylinder: 270 l

    Nominal capacity, buffer cylinder: 100 l

    Surface area, heat exchanger: 3.20 m²

    Height: 1918 mm

    Width: 680 mm

    Depth: 910 mm

    Height when tilted: 2123 mm

    Weight: 250 kg
