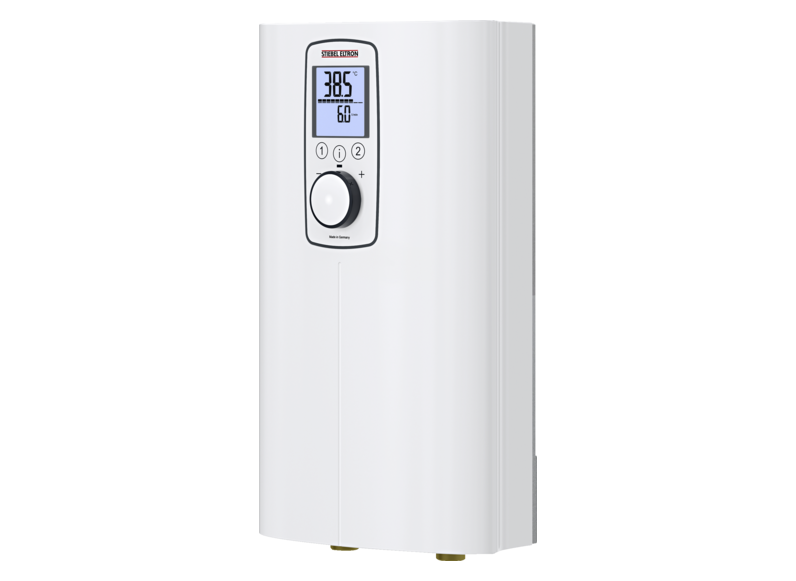

Compact instantaneous water heater
DCE-X 10/12 Premium

    • Fully electronically controlled compact instantaneous water heater
    • Maximum energy efficiency and accurate temperature delivery at all times thanks to 4i technology
    • Easy operation via large, illuminated multifunction display
    • Power saving mode due to optional ECO function
    • High grade design
    • Two temperature memory buttons for quick temperature selection
    • Temperature limit can be fixed at 43 °C, 50 °C or 55 °C
    • Exceptionally slimline, compact design
    Questions about the product Get contact
    award
    award
    award

    Product details

    Enjoy hot water on demand at any time

    First thing in the morning, throughout the day or
    late at night: water is always available at the right
    temperature, whenever you need it.
    That's the assurance and precision you get
    with this compact instantaneous water heater. This is made
    possible by the memory function: two buttons,
    which you can use to quickly and easily save
    frequently used temperatures.

    Call up precise information at any time

    The backlit display screen greatly facilitates
    the operation of this appliance.
    You can use it to call up energy consumption data, the flow rate
    or the current time, for example. The water temperature you have set
    always remains visible.

    Make way for efficiency

    There are plenty of options open to you for the
    installation of this model. It is
    equally well suited to the kitchen sink,
    washbasin or shower. No matter where you install
    this compact appliance, you will benefit from
    the energy efficiency it provides. It only heats water
    when a tap is actually turned on.


    ERP product datasheet
    Reach-Information
    UK ERP product datasheet
    Technical datasheet

    Product Number: 238159

    Rated voltage: 220 V

    Rated voltage 1: 220 V

    Rated voltage 2: 230 V

    Rated voltage 3: 240 V

    Rated output: 10.0/12.0 kW

    Rated output 1: 10.0/12.0 kW

    Rated output 2: 11.0/13.1 kW

    Rated output 3: 12.0/14.3 kW

    Rated current: 45.5/54.5 A

    Rated current 1: 45.5/54.5 A

    Rated current 2: 47.8/57.0 A

    Rated current 3: 50.0/59.5 A

    Fuse protection: 50/60 A

    Fuse protection 1: 50/60 A

    Fuse protection 2: 50/60 A

    Fuse protection 3: 50/60 A

    Frequency: 50/60 Hz

    Frequency 1: 50/60 Hz

    Frequency 2: 50/60 Hz

    Frequency 3: 50/60 Hz

    Phases: 1/N/PE

    IP rating: IP25

    Temperature setting: Ki, 20–60 °C

    Colour: white

    Height: 372 mm

    Width: 217 mm

    Depth: 109 mm

    Weight: 2.50 kg

    Energy efficiency class: A
